Modular STAGE Systems
Features of TOMKO stage:
- standard stage platform dimensions: 2x1 m
- loading capacity: 750 kg/m²
- weight: 31 kg
- TUV Nord Certification
- minimizing the number of legs
- joining platforms and attaching legs in a single step
- height frame platform : 87 mm
- made of hardened aluminum (EN-AW 6005 T6)
- adjustable height of stage by leveling
- waterproof plywood with anti-slip surface: 12 mm
- 3-year warranty
Parameters:
- made of waterproof plywood with anti-slip surface and hardened aluminum frame
- TUV Nord Certification
- platform floor: 12 mm thick, dark brown Finnish plywood panel
- aluminum frame: height up to 8.7 cm (EN-AW 6005 T6)
- weight of a panel 2x1m: 31 kg
- max. load 750 kg / m²
- adjustable legs-length by leveling
- joining of segments and attaching legs in a single step
- minimizing the number of legs
- outdoor use (protect against intensive sunshine and adverse water)
- possibility of adding supplementary accessories as rails, adjustable legs or stairs
-
3 years warranty
VARIABILITY OF SHAPES
Variety of shapes and tailored solutions
REDUCING THE NUMBER OF LEGS
Connecting up to 4 stage decks with a single leg.
Stage meets legs only through the aluminium frame so the plywood board is protected against damage.
LEG IS A MULTIPURPOSE COMPONENT
The leg can be used for attaching stairs, safety rails, and bracing to the stage.
CONNECTION
TOMKOstage system offeres quick stage assembly. Joining of decks and attaching legs is done in a single step.
ATTACHING STAGE RAILS
Fast and easy attachment using the rail support bolt.
VERSATILITY OF TOMKOstage
You do not need many accessories to plan a layout of your stage variations.
Components

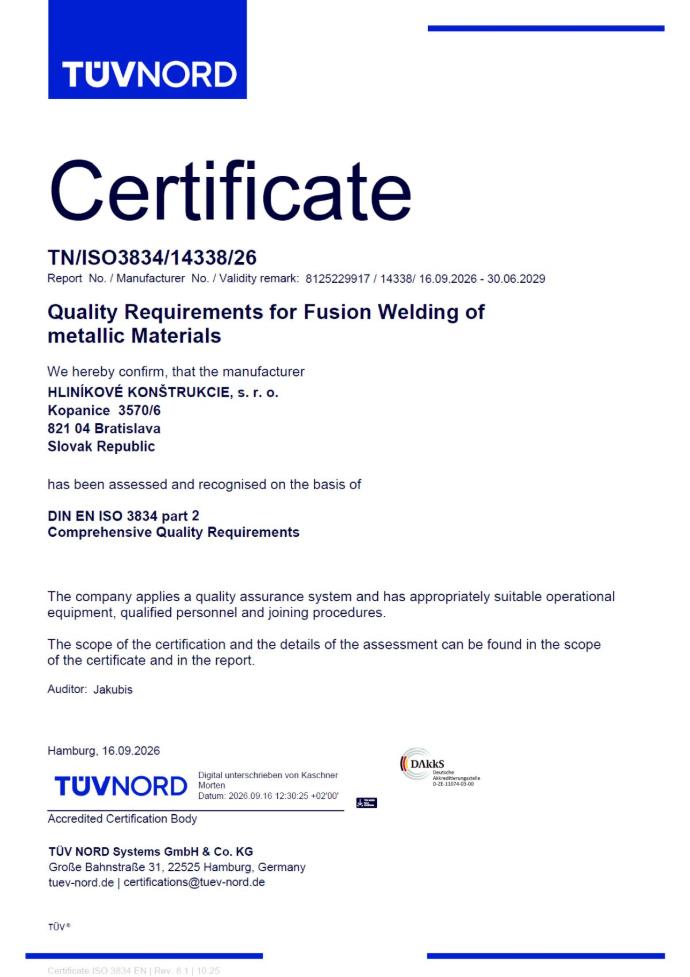

Certificates
Certificates
